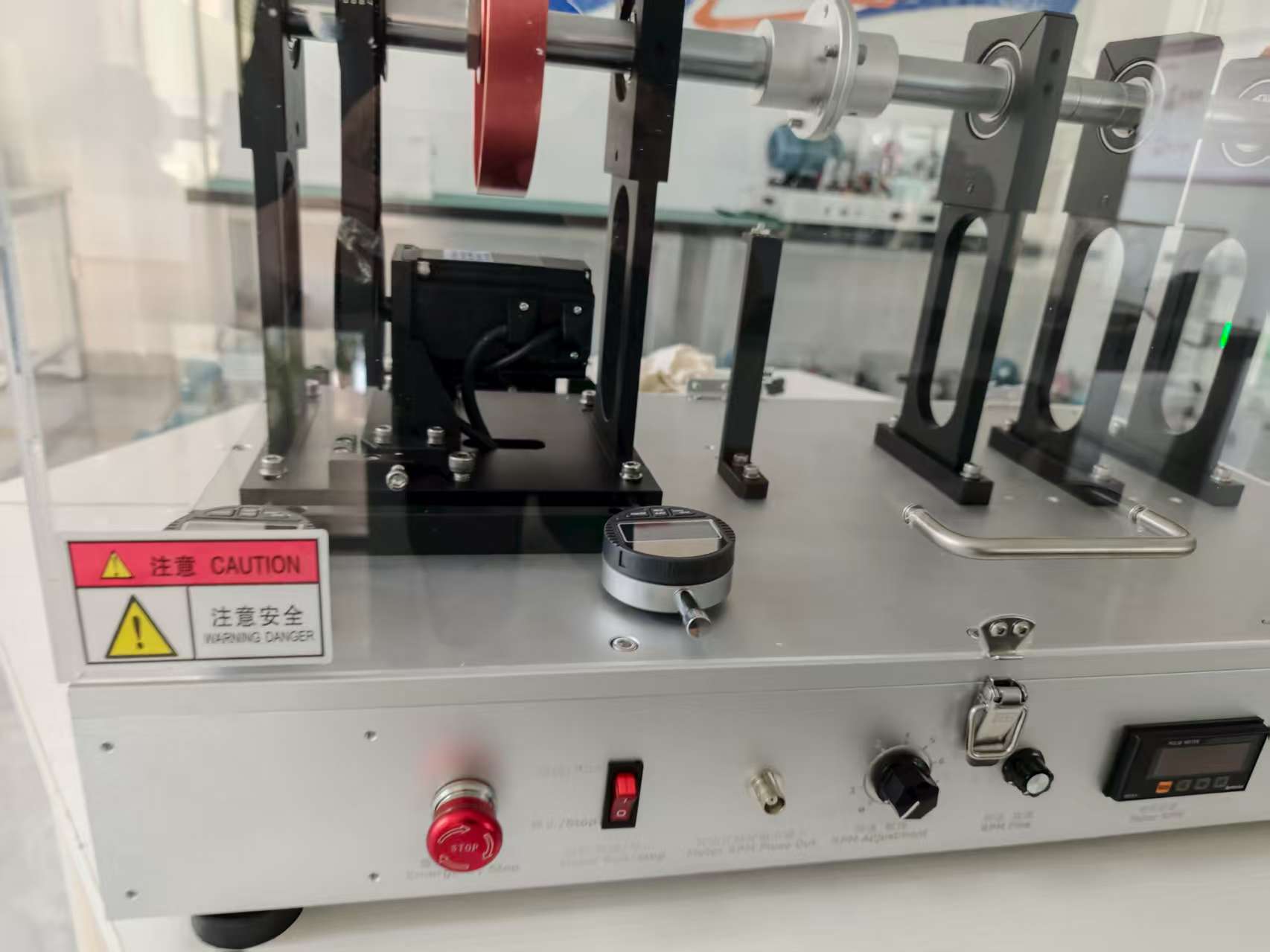

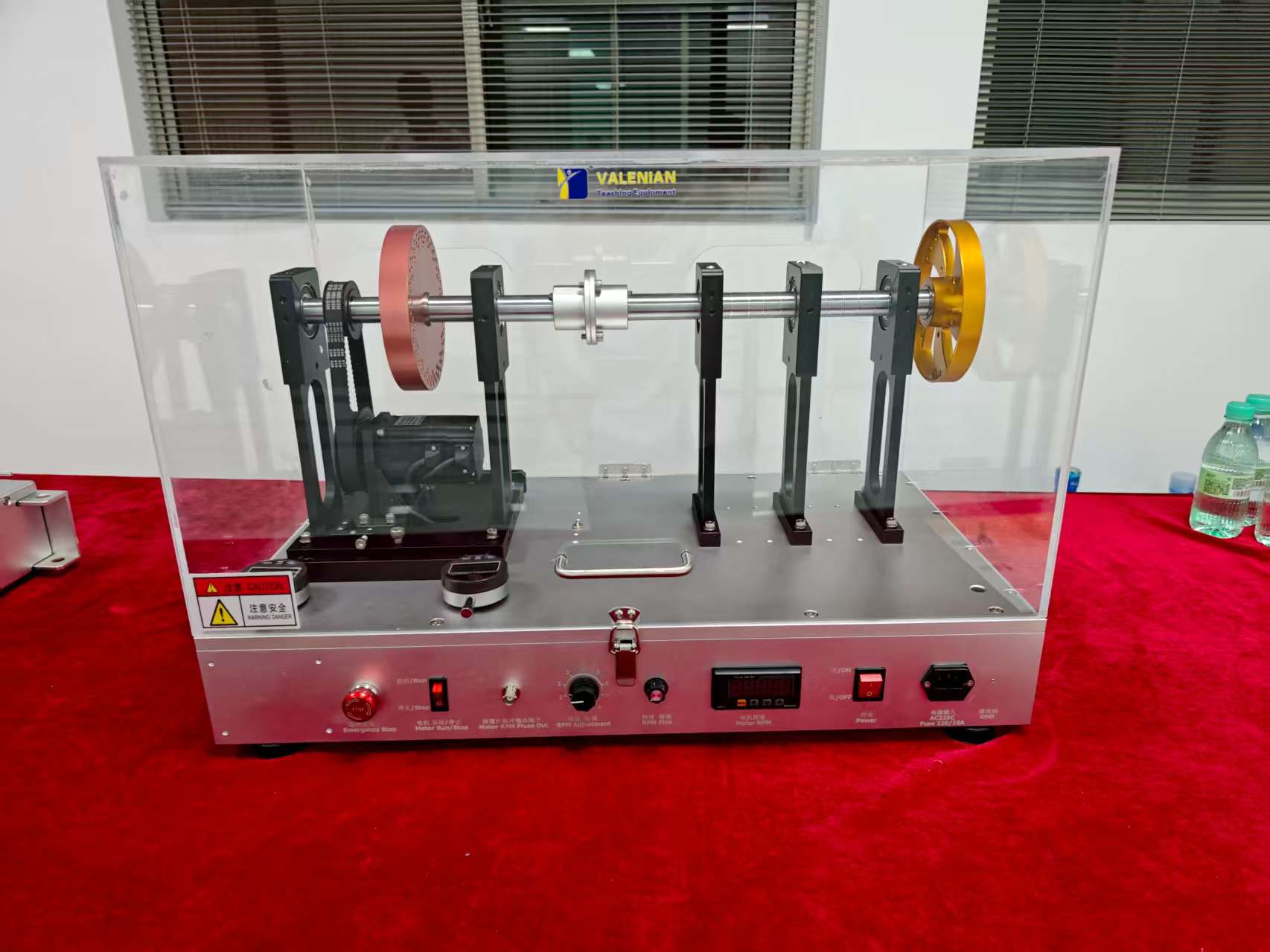

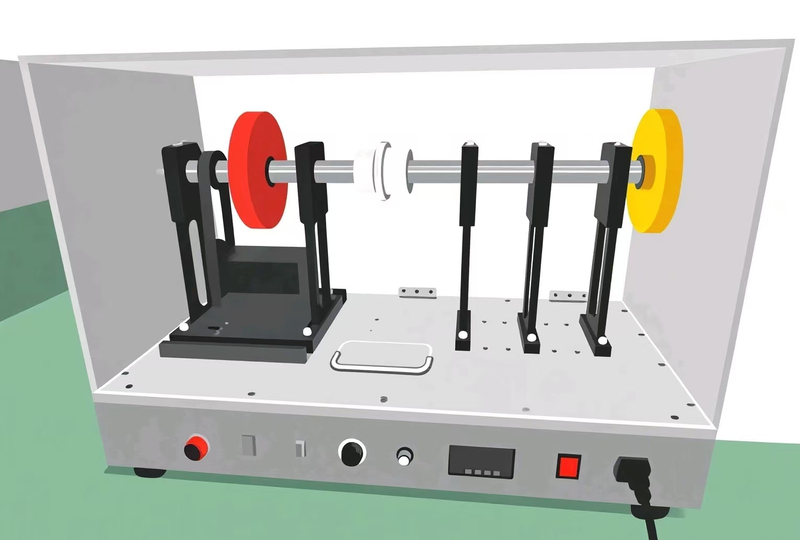

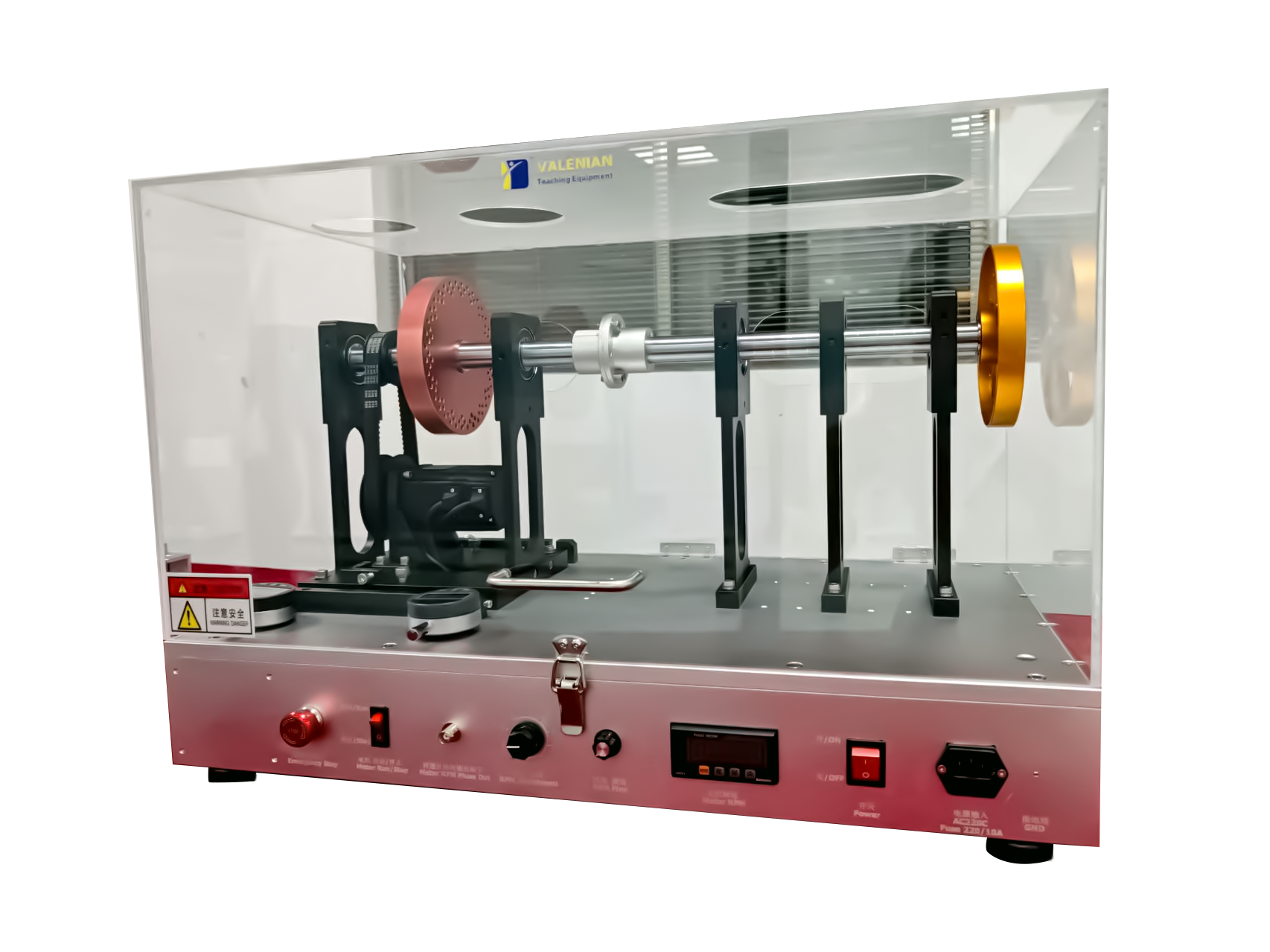

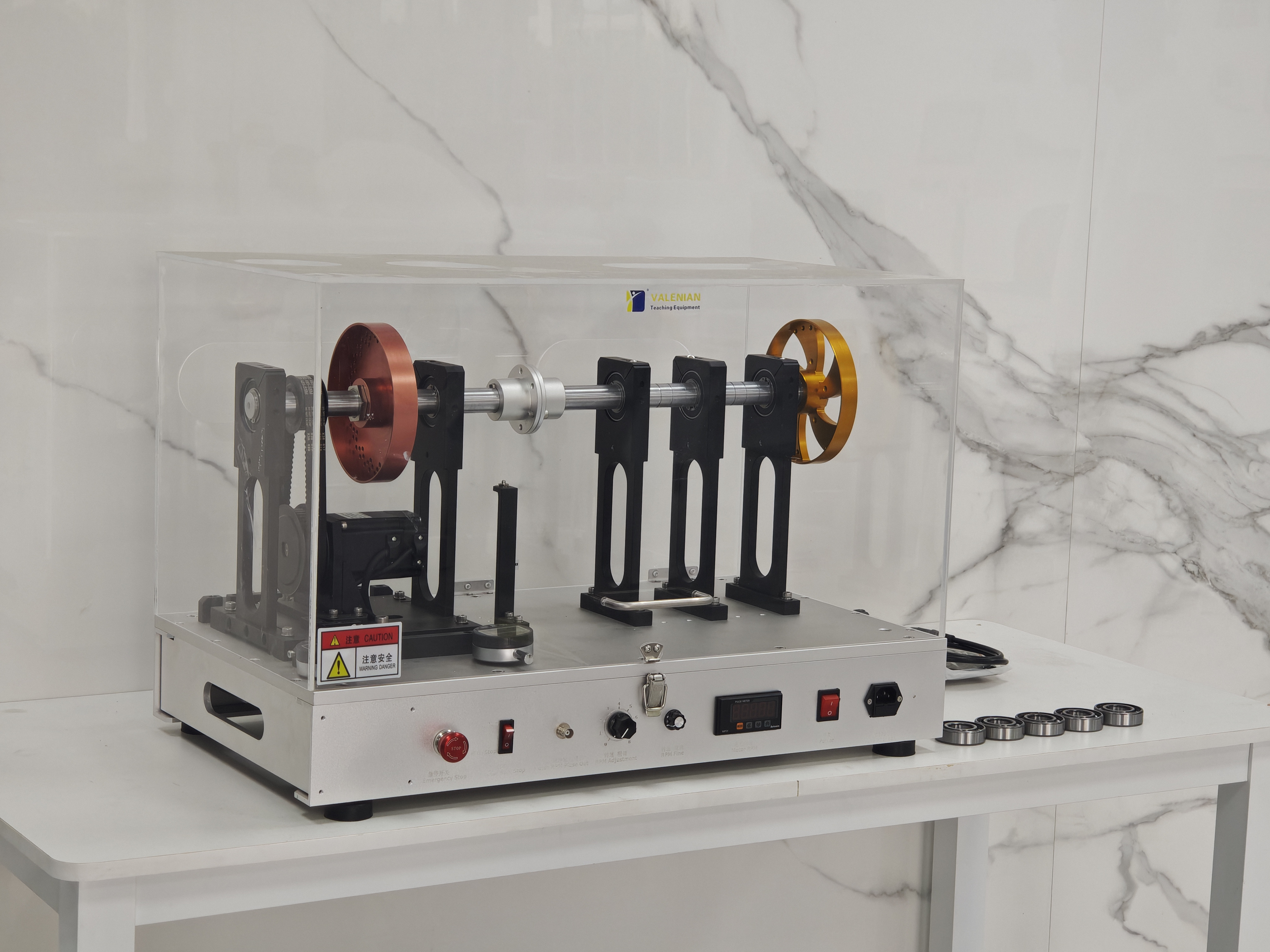

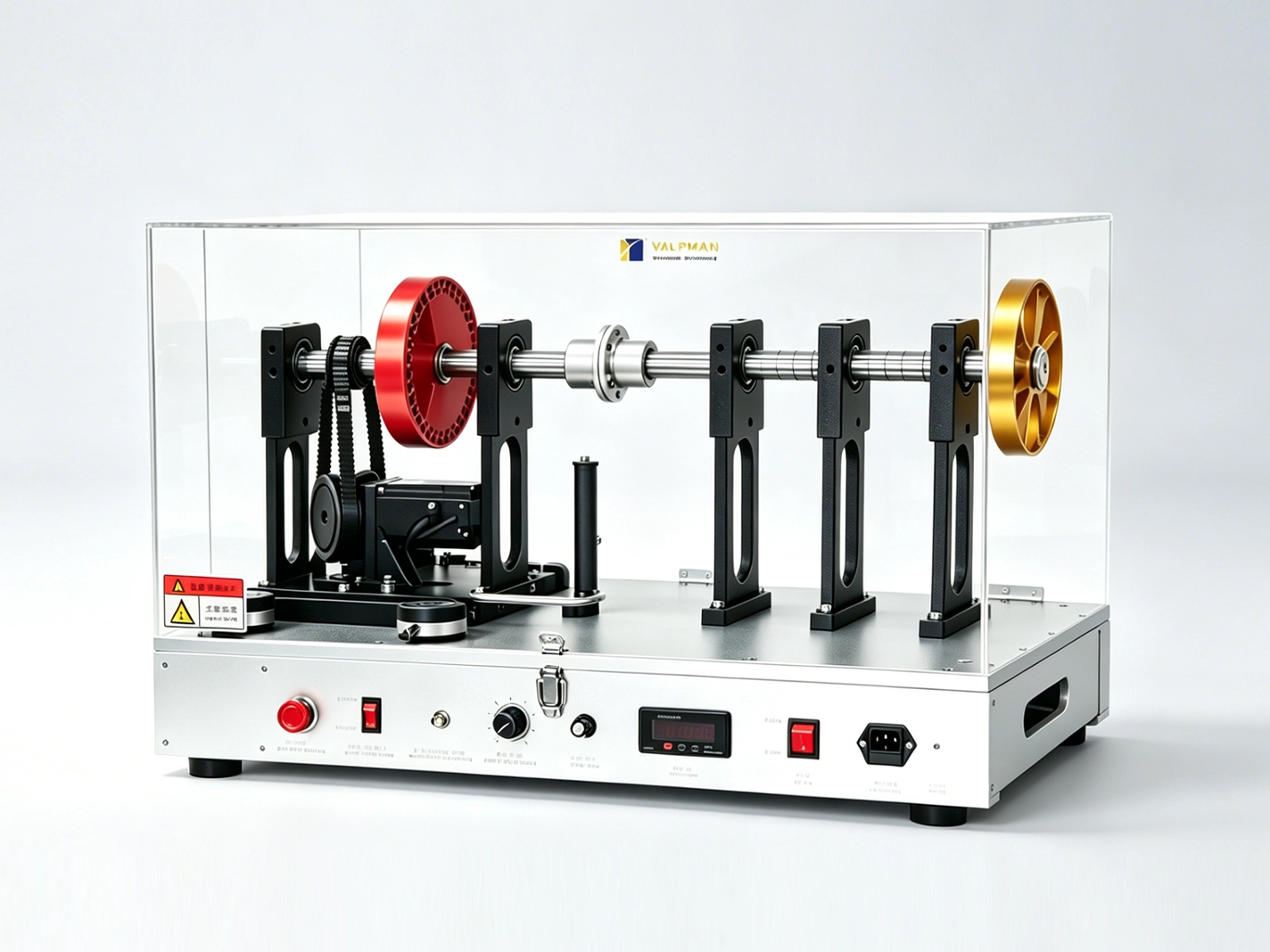

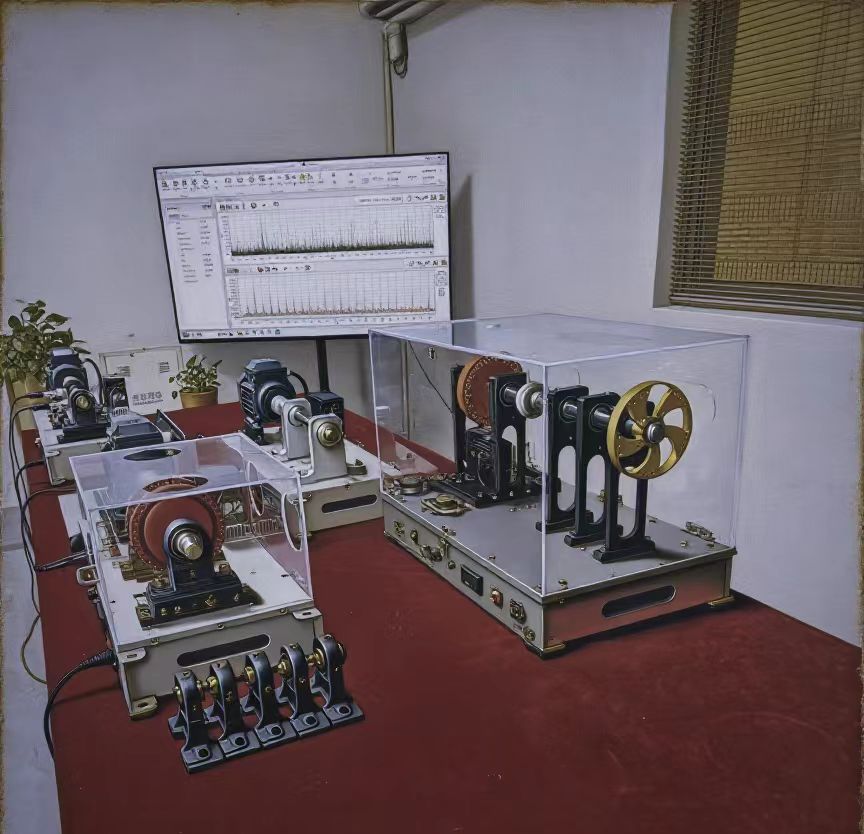

The PT300-SAT shaft alignment and dynamic balance simulation test bench is specifically designed for in-depth research on bearing faults, misalignment, and unbalance issues in mechanical faults, which account for over 90% of mechanical faults. During the initial design of the test bench, full consideration was given to minimizing additional changes in external conditions when replacing components. This allows for the acquisition of useful data under the same working conditions, ensuring the accuracy and consistency of analysis results.
The test bench can simulate vibration phenomena caused by unbalance, misalignment, and bearing faults, and is applicable to various scenarios such as vibration research, training, fault diagnosis, and educational training. Its design allows users to easily analyze and learn about common mechanical fault symptoms.
II. Experimental Research Contents:
Practice of vibration measurement and selection of vibration sensor positions;
Impact of rotor unbalance on vibration;
Impact of shaft misalignment on vibration;
Simulation of soft foot faults;
Simulation of belt faults;
Simulation of bearing faults (bearing inner ring fault, bearing outer ring fault, bearing cage fault, bearing rolling element fault, and comprehensive bearing fault);
Simulation of single-plane and double-plane dynamic balance.
Main Components of the Test Platform
The test bench mainly consists of an aluminum platform base plate, a centering indicator dial gauge, a permanent magnet brushless motor, a drive governor, rolling bearings, a rotor system, a coupling, a pulley, a synchronous belt, a dynamic balance rotor disk, a rotor impeller, and an acrylic protective cover.
IV. Brief Introduction to the Main Structures of the Test Platform
4.1 Motor Drive
For the motor belt transmission system, when the motor is directly connected to the rotor, it is almost impossible to achieve perfect shaft alignment, so there will be a certain tolerable residual deviation. When the motor is connected to the rotor through a belt transmission, it is conducive to fine dynamic balance work because the misaligned components are completely eliminated, leaving only vibration components caused by unbalance. Therefore, in on-site dynamic balance work in industrial settings, most rotors are driven by belts.
4.2 Rotor Disk
To simulate double-plane balance experiments, the equipment is equipped with two rotor disks as standard at the center of the shaft. In addition, a third rotor disk is available as an optional accessory.
4.2.1 Rotor Disk (Model M6-36)
The rotor disk has 18 M5 screw holes on two different circumferential diameters:
Diameter d1 = 140 mm, with 36 M5 holes at 10° intervals;
Diameter d2 = 130 mm, with 36 M5 holes at 10° intervals;
Diameter d3 = 120 mm, with 18 M5 holes at 20° intervals.
The holes on diameters d1 and d2 are arranged in sequence, 5° apart from each other, allowing for the attachment of correction weights at precise angles to achieve more accurate balance correction. Users can intuitively see the angular position of the correction weights through the lines marked at 90° intervals.
4.2.2 Fan Rotor
The fan rotor is a disk with 5 blades, designed to resemble fan blades. Each blade is provided with 15 holes, which are not arranged in completely opposite positions, thus enabling the study of the additional effects of mass distribution.
Diameter d1 = 136 mm, with 15 M5 holes at 24° intervals;
Diameter d2 = 65 mm, with 5 M6 holes at 72° intervals.
The disk adopts a concave design and is fixed to prevent unbalanced or calibrated mass screws from protruding from the rotor surface, ensuring operational stability and safety.
4.3 Centering Base Mechanism
The centering base mechanism is designed to allow the motor base to move in four directions when testing centering effects, thereby artificially creating misalignment. In addition, the equipment is equipped with a dial indicator for accurately positioning the base feet during position calibration. Users can set misalignment states through this mechanism and accurately restore them to the original centering state.
Main Components:
Operation Instructions:
After slightly loosening the fixing bolts in the centered state, users can change the centering state through the adjustment knobs. This is because the base plate used to create misalignment is pressed tightly by strong springs during operation. Through the indicated value of the dial indicator, users can accurately achieve parallel misalignment or angular misalignment, and compare and analyze the changes in vibration signal patterns with misalignment states in real-time.
After studying physical changes (such as increased power consumption), the equipment can be accurately restored to the original centering state, ensuring the accuracy and repeatability of the test.
Functional Features:
Four-way movement: The motor base can move in four directions to flexibly create misalignment;
Dial indicator indication: Accurately measures the amount of misalignment to ensure operational accuracy;
Real-time analysis: Observes changes in vibration signal patterns in real-time for easy comparison and analysis;
Centering restoration: Can be accurately restored to the original centering state after testing to ensure equipment stability.
In short, the centering base mechanism provides an efficient and accurate tool for studying misalignment phenomena and their impact on equipment operation.
4.4 Design of Centering Base Feet
The centering base is designed to simulate various misalignment conditions, including the common soft foot phenomenon in industrial sites, so that users can learn how to perform centering adjustments and fault diagnosis.
Specific Design Dimensions of Base Feet:
Front left foot: shortened by 0.6 mm;
Front right foot: shortened by 0.2 mm;
Rear left foot: shortened by 0.4 mm;
Rear right foot: shortened by 0.4 mm.
Design Features:
The front left foot is 0.4 mm shorter than the right foot: This design intentionally creates a soft foot phenomenon, which users must correct before performing centering work, thereby learning how to detect and correct soft feet;
Gaskets and spring bolts: Used to adjust and fix the base feet to ensure centering accuracy;
Motor base design: The motor base provides sufficient operating space for centering work, and the feet are equipped with independent centering base mechanisms;
Dial indicator and adjustment knobs: A dial indicator and left-right knobs are installed to guide the amount of centering movement, ensuring adjustment accuracy.
Design Purpose:
By simulating misalignment conditions in actual industrial scenarios, it helps users master centering techniques and fault diagnosis methods;
Provides convenient operating space and adjustment mechanisms to make centering work more efficient and accurate.
This design is not only suitable for teaching and training but also for centering correction of actual industrial equipment, with high practicality and learning value.
4.5 Bearing Blocks and Faulty Bearings
Two bearing blocks are installed in the driving part, and the other two bearing blocks are installed on the left and right sides of the driven part respectively. The bearing block installed in the center of the driven part is only used to learn the characteristics of faulty bearings; this bearing block is in an idle state with no bearing installed.
The four types of faulty bearings are installed as follows:
Leftmost: Inner ring faulty bearing;
Second from the left: Outer ring faulty bearing;
Rightmost: Cage faulty bearing;
Second from the right: Rolling element faulty bearing.
Method for Measuring Faulty Bearings:
Loosen the screws on the bolts of the central bearing block, push the bearing to be tested in and fix it;
Measure after installing the acceleration sensor.
Design Features:
This design minimizes changes in boundary conditions, enabling immediate and accurate comparison between normal and faulty states, and avoids the process of completely disassembling and reassembling the rotor assembly to replace bearings.
Types of Bearings Installed and Provided (unless otherwise specified):
From left to right:
Inner ring faulty bearing (0.55mm);
Outer ring faulty bearing (0.55mm);
Rolling element faulty bearing;
Cage faulty bearing.
This design is suitable for bearing fault diagnosis and analysis, helping users quickly identify and compare the characteristics of different faulty bearings and improving the efficiency of fault diagnosis.
4.6 Faulty Bearing Components
The faulty bearing set includes the following 4 types of faulty bearings and 1 bearing block:
Inner ring faulty bearing
Identification: Marked with "I" in English on the bearing ring;
Fault characteristic: A 0.55 mm crack on the inner ring;
Fault frequency: 5.427 X.
Outer ring faulty bearing
Identification: Marked with "O" in English on the bearing ring;
Fault characteristic: A 0.55 mm crack on the outer ring;
Fault frequency: 3.572 X.
Cage faulty bearing (FBT-25)
Identification: Marked with "T" in English on the bearing ring;
Fault characteristic: The cage frequency (or fundamental rotation frequency) is the rotation speed of the rolling element cage assembly. This bearing simulates low-frequency modulated vibration phenomena by artificially creating faults on the cage;
Fault frequency: 0.397 X.
Bearing rolling element fault (FBB-25)
Ball faulty bearing, marked with the letter "B" on the bearing ring, with a 3mm spalling pit on the ball;
Fault characteristic frequency: 2x fault characteristic frequency: 4.644 X.
Design Purpose of Components:
This component is used to simulate and analyze the vibration characteristics of bearings under different fault conditions, helping users learn fault diagnosis techniques;
Each faulty bearing has clear identification and characteristic frequencies, facilitating users to conduct accurate fault analysis and comparison.
This design is suitable for mechanical fault diagnosis training and research, and can effectively improve the ability to identify and analyze bearing faults.
4.7 Speed Control and Run/Stop Switch
The operation of the test bench is more flexible and convenient because the speed control knob and run/stop switch are installed on the front panel respectively, instead of directly using the keyboard function of the motor drive. This design makes the functional operation of the test bench more convenient, as variable resistance function control knobs are installed on the front panel, avoiding the inconvenience of using small keyboards.
Design Features:
Speed control knob: Installed on the front panel, allowing users to freely adjust the speed with simple and intuitive operation;
Run/stop switch: Installed on the front panel, enabling users to easily start or stop the test bench without relying on the motor drive keyboard;
Function control knobs: Adopting variable resistance design, they are installed on the front panel respectively to provide a more comfortable operating experience and avoid the inconvenience of using small keyboards.
4.8 Speed Detection and RPM Display
An optical sensor is installed under the base plate to detect the shaft speed and obtain speed signals for synchronization. A speed signal of one pulse per revolution is output to the BNC terminal, which can be used as a synchronization signal for the signal analyzer. Therefore, the infrared speed sensor can be used for phase measurement without installation during balancing work. At the same time, this signal is also used to display RPM in real-time on the front panel. If the infrared sensor reflection tape attached to the surface of the motor shaft or coupling is removed, the speed cannot be detected.
A display device (7-segment LED display) is installed on the front panel to display RPM and vertical weight values. This display continuously shows the instantaneous value of RPM (or Hz).
Design Features:
Optical sensor: Installed under the base plate to detect shaft speed and generate speed signals;
BNC terminal output: A speed signal of one pulse per revolution can be used for synchronization of the signal analyzer;
Infrared speed sensor: Can perform phase measurement without installation during balancing work;
Real-time RPM display: Displays speed (RPM or Hz) in real-time on the front panel;
7-segment LED display: Continuously displays the instantaneous values of RPM and vertical weight.
4.9 Dial Indicator
When calibrating the alignment of the rotating shaft, dial indicators are installed on the front and rear feet of the motor base to study the measurement of movement on the left and right sides and learn the impact of misalignment on the equipment. In addition to providing accurate movement of the front and rear feet during centering work, the dial indicator can also be used to assist in quick centering and test misalignment conditions to accurately restore to the original state.
Design Features:
Installation position: Dial indicators are installed on the front and rear feet of the motor base;
Measurement function: Used to measure the movement of the left and right sides and study the impact of misalignment;
Centering assistance: Provides accurate movement information during centering work to assist in quick centering;
4.Restoration function: Tests misalignment conditions to help the equipment accurately restore to the original state.
