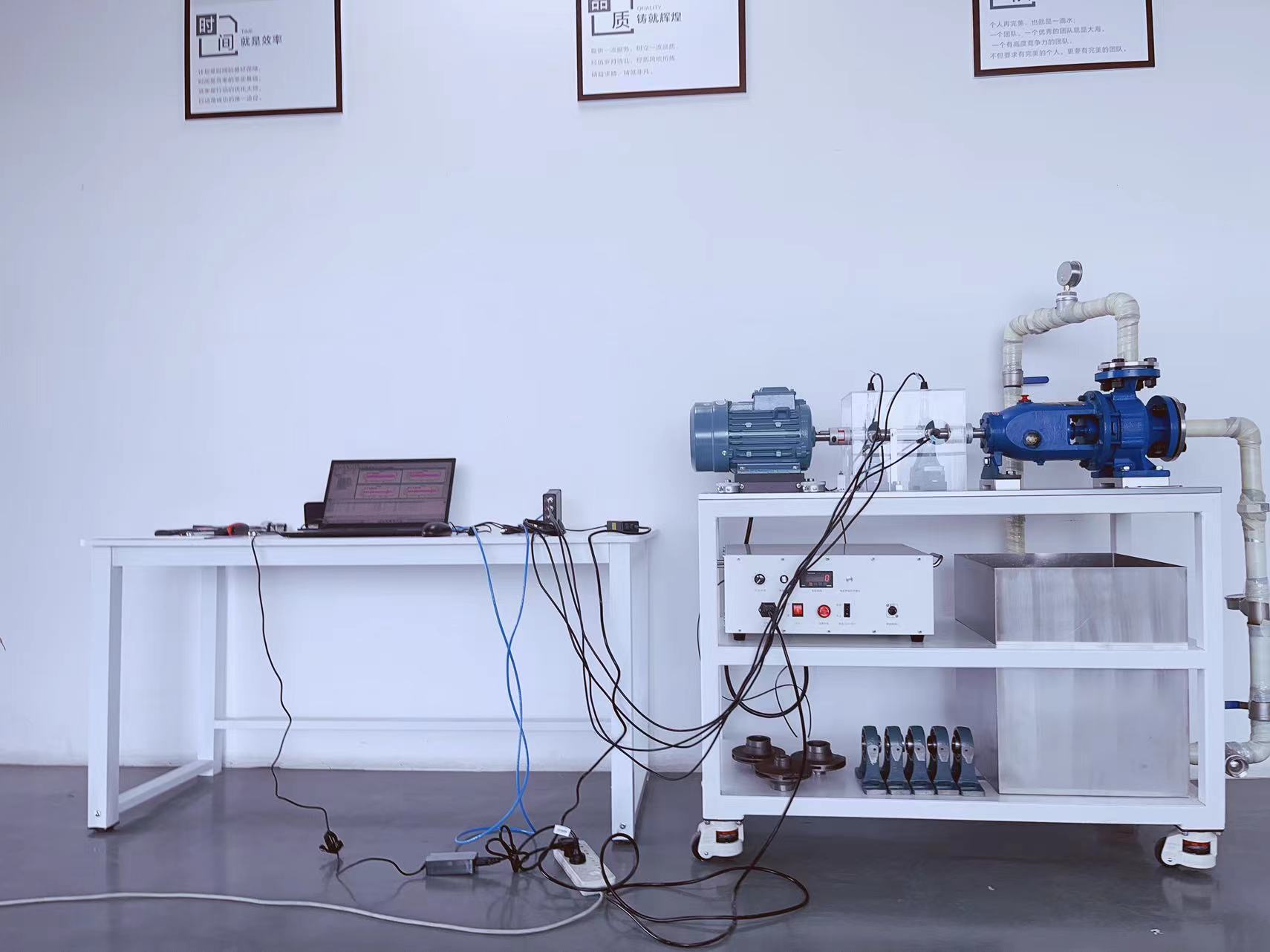

The PT580 Pump Test Bench can be used for vibration collection and diagnosis of various faults of centrifugal pumps (such as: cavitation phenomenon, impeller cracks, impeller wear, impeller imbalance and other faults), including it can simulate a variety of faulty bearing elements, detect and judge the failure type of fault signal.

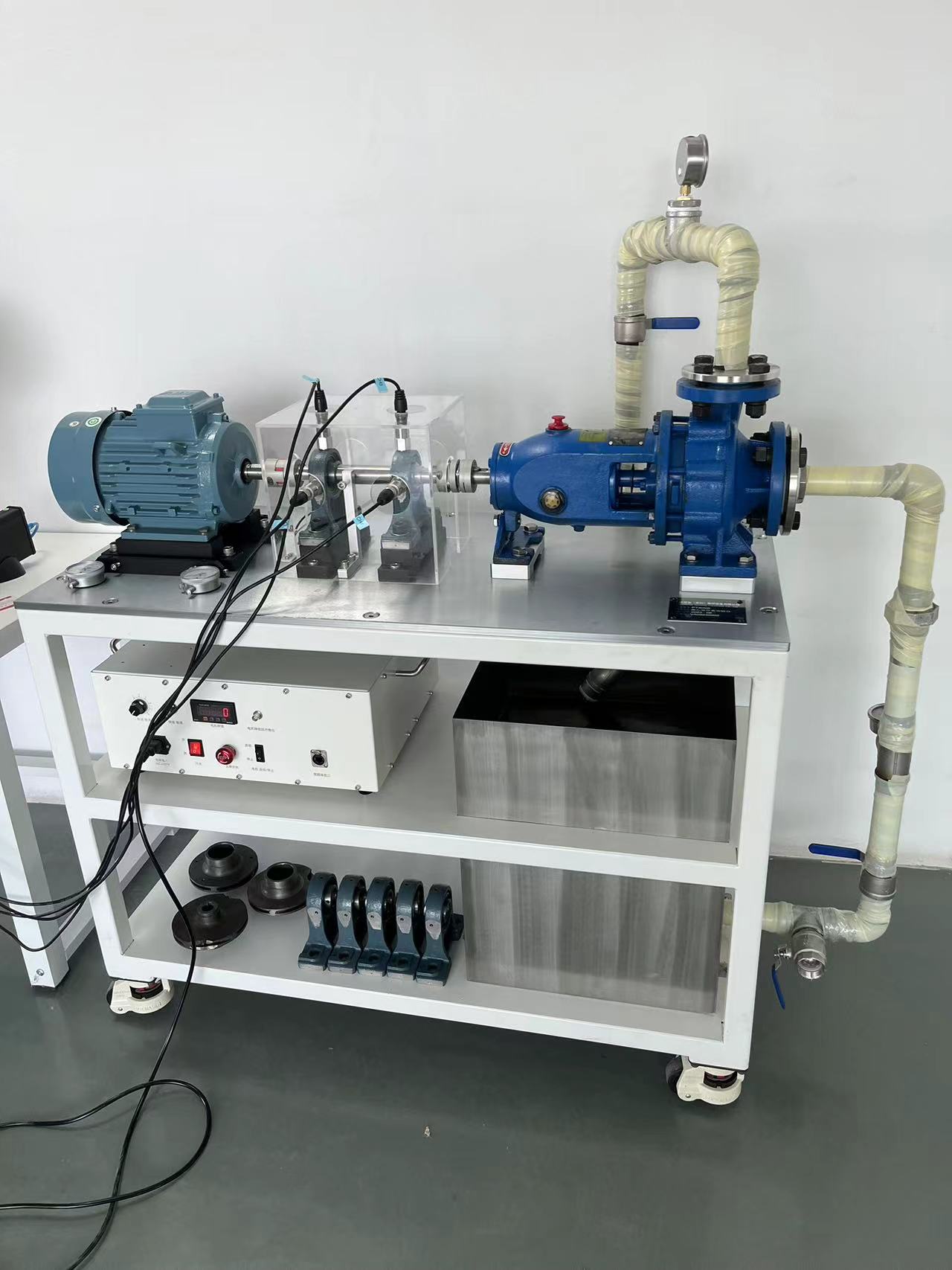

The Water Pump Test Bench mainly consists of motors, frequency converters, couplings, support bearings, water circulation pumps, piping, shut-off valves, tanks, pointer pressure gauges, operating variable control modules, faulty bearings, faulty impellers.
Observing and testing cavitation in centrifugal pumps.
Support bearing failure, inner ring, outer ring, ball, cage, comprehensive failure.
Unbalanced, worn and deformed impellers.
Observation of slow filling, low outlet pressure, and substandard flow rate of centrifugal pumps.
Interruption phenomenon after the centrifugal pump pipeline drains.
Characteristics of centrifugal pump operation vibration through vibration analysis.
Understand and interpret the spectral characteristics of faulty components.
Testing fault signals using computer vibration analysis method.
Drive motor | High efficiency and energy saving ABB three-phase AC motor, power 1.5 kW, 220V |
AC inverter | Inverter frequency range, 0-599Hz, rated input: 380-480V, 2.2kW |
Test flow | 12.5m³/hour |
Types of impeller failures | Impeller imbalance, impeller wear, impeller deformation |
Rolling bearing | PH206 deep groove ball rolling bearings, inner diameter 30mm, integral bearing set with housings, easy to replace faulty bearings |
Speed range | 0~3600 variable speed adjustable |
Size/Weight | 1100mm x500mm x1350mm ，260kg |
