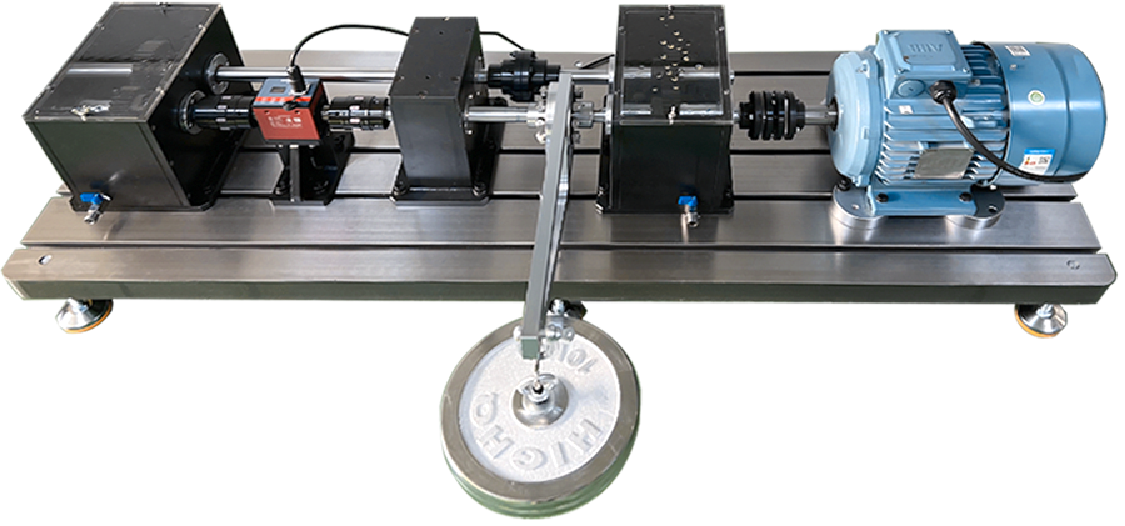

Valentinian VALENIAN company has specially developed and designed a gear life test bench (PT500-DPS) for simulating the fault diagnosis and life prediction of industrial gearboxes. The PT500-DPS gear life test bench includes two sets of single-stage parallel axis test gearboxes with rolling bearings, which can simulate gear transmission ratios from 1 to 0.7. The gearbox can be loaded with sufficient torque to cause wear and damage to the gears. All mechanical structures of the test bench are modularly installed, facilitating the study of gearbox dynamics and noise characteristics, health monitoring, and vibration characteristics based on diagnostic and predictive technologies. The test bench has stable performance, can withstand large load impacts, and has sufficient space for gear replacement, installation, and installation of various sensors.
This test bench can simulate faults such as tooth surface wear, tooth cracking, tooth surface pitting, and missing teeth of straight and helical teeth. It can also simulate faults in the inner and outer rings, rolling elements, and their coupling faults of rolling bearings. It is possible to introduce a single fault or multiple faults simultaneously to study the coupling effects between different types of faults. By loading loads and studying the damage and expansion characteristics of gears and bearings, simulate the fluctuation effects of actual loads on site.
By using the touch screen operation method and visual operation mode, various test conditions such as speed, torque, output frequency, output voltage, IGBT temperature, bus voltage, output power, output current, and output torque settings can be displayed and adjusted. Simultaneously equipped with an emergency stop button to immediately shut down in case of emergency. The motor module and power supply have dedicated mobile electrical control boxes.
Life cycle experiment of planetary gearbox gears;
Parallel gearbox gear life cycle experiment;
Full life cycle experiment of helical gearbox gears;
The load gearbox and radial loading system provide the load;
Rolling bearing fault diagnosis experiment;
Study the relationship between gear failure mechanism and factors such as load, speed, lubrication, etc;
Research on a gear remaining life prediction model based on damage development, speed, amplitude, and loading load;
Research signal processing technology and sensing technology for state monitoring of bearing and gear fault prediction;
Study the relationship between vibration, motor current, load, friction, and noise;
Validate model-based fault diagnosis and prediction algorithms;
| Main drive motor | 5.5KW， Three phase asynchronous motor, rated speed 2908RPM, bearing model 6208-2Z/C3 (drive end) 6208-2Z/C3 (non drive end), motor power factor 82.8%, two-stage transmission. Power supply: Input 380VAC, three-phase, 50/60 Hz. |
| Visual operation screen | Size, 7, touch panel, four wire resistive touch screen, resistant to voltage surges, AC1000V，10mA， Less than 1 minute (between signal and ground), anti-interference ability, interference voltage: 1500Vp-p, pulse period: 1us, duration: 1 minute, insulation resistance, DC500V, above 10M Ω (between signal and ground). |
| Process control parameters | Visual operation mode is used to display and adjust various test conditions such as speed, torque, output frequency, output voltage, IGBT temperature, bus voltage, output power, output current, and output torque settings. Simultaneously equipped with an emergency stop button to immediately shut down in case of emergency. |
| Accompanying the testing of gearbox | High strength precision machined steel, box size 310 * 242 * 265mm, center height 165mm, internally installed bearing HRB6006 deep groove ball bearing. Single stage parallel axis gearbox, spur gear input angle: 20 ° modulus 3.0, reduction ratio: 1:0.7 (1st stage: 28/40) Optional faulty gears, fault types, cracks, missing teeth, wear, and broken teeth. |
| Test gearbox | High strength precision steel, box size 310 * 242 * 265mm, center height 165mm, internally equipped with HRB6006 deep groove ball bearings. Single stage parallel axis gearbox, spur gear input angle: 20 ° modulus 3.0, reduction ratio: 1:0.7 (1st stage: 28/40) Optional faulty gears, fault types, cracks, missing teeth, wear, and broken teeth. |
| Supporting bearing box | High strength precision machined steel, box size 280 * 170 * 270mm, center height 165mm, internally installed bearing HRB6006 deep groove ball bearing. Bearing optional fault types include outer ring fault, inner ring fault, cage fault, rolling element fault, and comprehensive fault. |
| Load loader | High strength precision processed steel, with a profile thickness of 20mm and a loading radius of 500mm, equipped with hooks and shackles for lifting positions, and equipped with two 10KG weight loading plates. |
| Loading load coupling | Load coupling, inertia disc diameter 125mm, U-shaped bolt mounting hole, adjustable angle 12 °, displacement length 10mm, equipped with 8 high-strength locking bolts, matched with load loading stop bracket, for torque loading. |
| Speed range | Adjustable from 0-3500rpm, with an accuracy of 1rpm. Rated at 1500rpm. |
| Product size | 1800 * 600 * 450, precision machined cast iron T-shaped groove installation base plate. |
