New Product Recommendation: BTS200 Vibration Demonstration Equipment

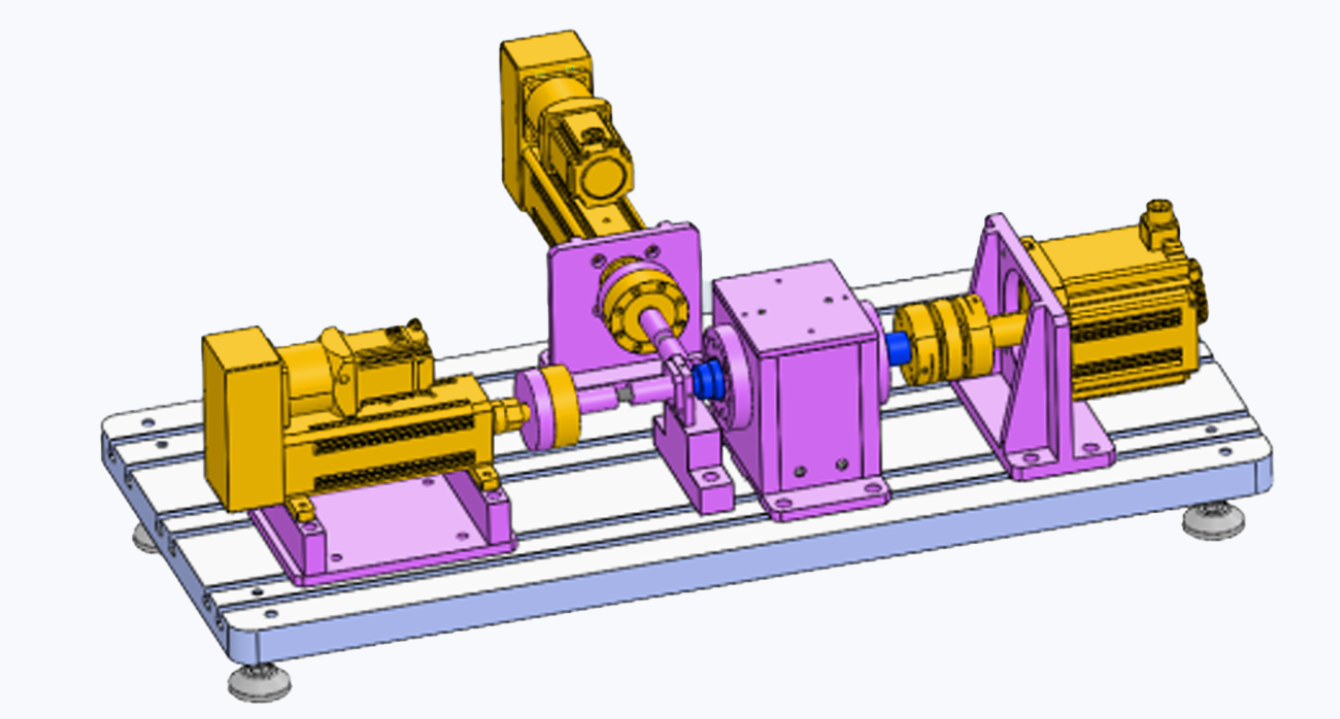

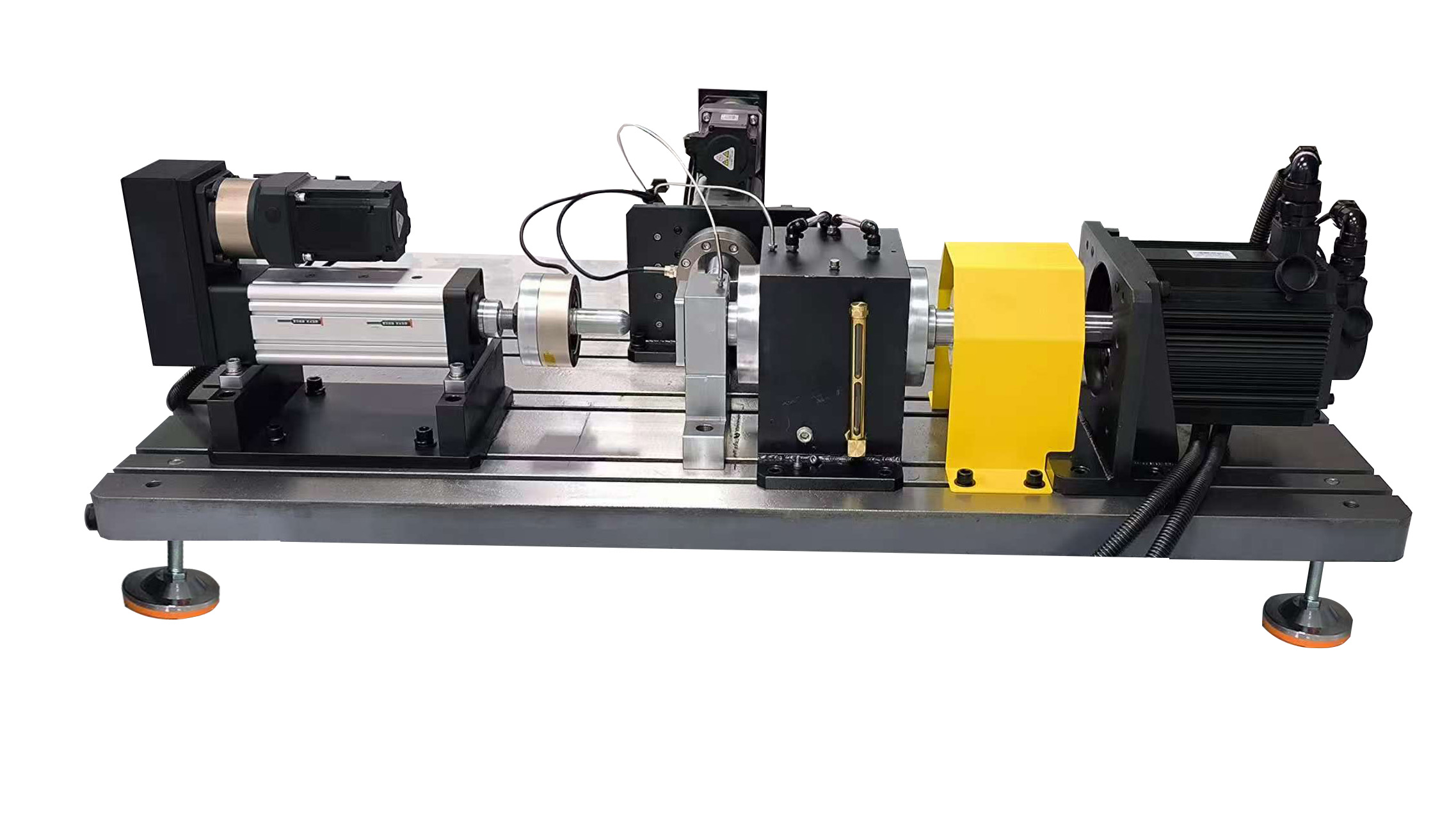

The BTS200 vibration demonstration device can simulate various bearing life tests (such as meeting the requirements of deep groove ball, cylindrical roller, tapered roller, angular contact ball, needle roller bearing bearings). The design structure allows you to use various outer diameter bearing seats and bearing adapters, and can test various sizes and types of bearings. And equipped with oil temperature monitoring feedback, oil level gauge, centralized oil supply circulation system, and temperature alarm threshold can be set. At the end of the supporting bearing shaft, under the rated load of the bearing, an additional load of 15000N is applied to the bearing. It is an experimental device used to test the early wear of the bearing during long-term operation.

Functional Application

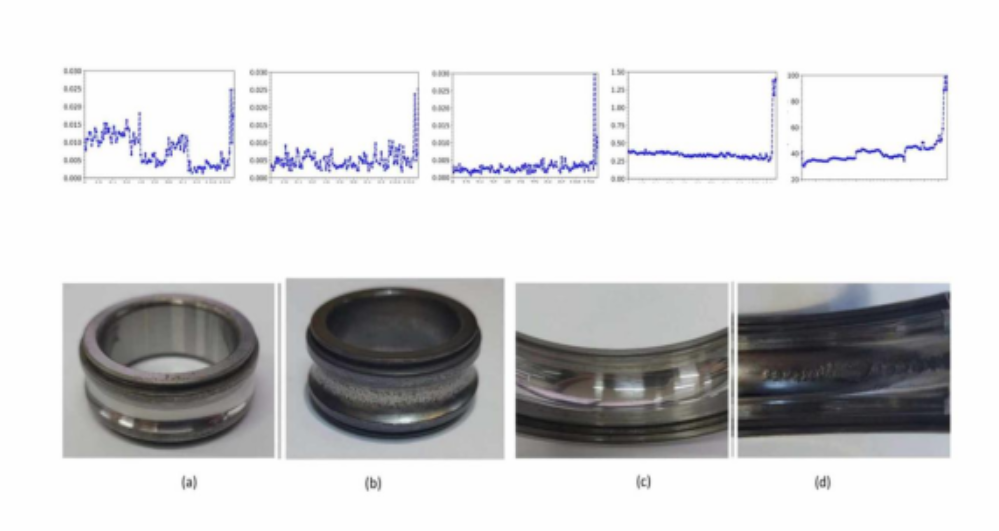

Conduct basic research on the development process of bearing wear;

Modeling and analysis of damage and degradation trends of rolling bearings and bearings lubricated with grease; Understand the relationship between bearing failure mechanism and bearing load and speed

Research on sensor types and signal processing techniques for developing a bearing remaining life prediction model based on the development of rolling bearing damage, operating speed, load type, and load size for bearing condition monitoring and life prediction;

The correlation between vibration, motor current, load, friction, and noise spectra;

Proof of basic diagnostic/life prediction algorithms for models;
